In this paper, an algorithm to construct the approximate medial axis of a n-dimensional object is proposed. The algorithm is based on euclidean distance mapping, which guarantees the invariance under isometric transformation of the results. Skeleton points are first locally characterized, which keeps a reasonable computational cost of the method. For that purpose, we define two parameters, phi and d, whose value correspond to the detail level of the skeleton, and introduce a natural scale-space for the skeleton. Second, a threshold is chosen for one of these parameters, which gives the final detail level of the skeleton. Finally, a global step verify that the topology of the skeleton correspond to the one of the initial object.

Skeletonization should have the following properties (requirements for the global representation of objects):

1. Homotopy : the skeleton must have the same topology as the object.
2. Rigidity or Isometric invariance : under rigid Euclidean transformations.
3. Reversibility : Reconstruction of the object outline from the skeleton.

Four classes of methods for skeletonization are proposed:

1. Thinning - has problems with Rigidity.
2. Grassfire - discretization problems on a grid.
3. Voronoi - "continuous" approach, a super-set of the skeleton.
4. Distance surface/map - find the discontinuities or ridges (or crest-lines).

Distance & Projection Maps:

Let X be the object to skeletonize, a subset of Z³. The complement of X (or background) is denoted X'. The Distance Map of X, denoted ß, is defined as follows :

where d is the distance function. The map is computed via Danielsson's algorithm.

Then, the projection of an interior point M on the background X' is given by the following Projection Map:

The discontinuities in the Gradient of ß locate the skeletal points. A simple approximation (FDM) is first used. Then it is noted that a skeletal pixel M is such that some neighbors have very different projections on the background (i.e., there is more than one boundary point at equal distance ß). Two parameters are proposed to measure this difference in projection:

1. The (chord) angle, phi, between 2 projections.
2. The distance, d, (on the object boundary) between the 2 projections, i.e., their chord length.

These 2 parameters are related as the skeletal axis bisects the chord angle. Thus the sinus of the bisected chord angle, phi/2, equals the mid-chord length, d/2, divided by the projection distance to the boundary. This definition of the chord angle is equivalent to the bisecting angle, theta, of Meyer, used to characterize fire propagation speed along the axis, or the alpha angle of Kruss (twice theta):

Primary & Secondary branches:

How to distinguish the effect of noise on the boundary? The authors proposed to distinguish 2 types of branches:

1. Principal branches:

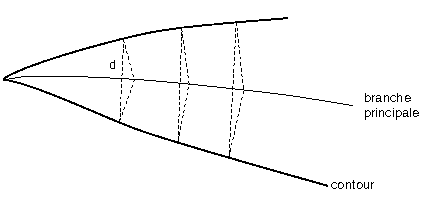

   • (a) central to the object or ending at "significant" boundary convexities;
   • (b) characterised by a slowly decreasing chord angle phi and slowly increasing chord distance d.
2. Secondary branches:

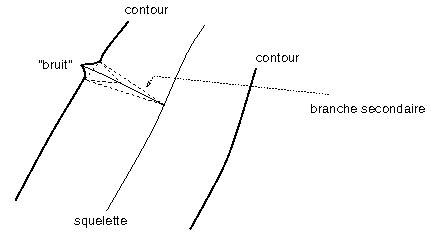

   • (a) resulting from small boundary dimples or "noise", i.e., near the boundary or background;
   • (b) characterized by a rapidly decreasing chord angle phi and a quasi-constant chord length d.

N.B.: These characterisations of "secondary" branches do not work with branches due to tiny holes. What is missing is a measure of "how many boundary points are creating how many skeletal points" (or vice-versa). For a tiny hole, like for a concavity of a dimple, very few boundary points create a large number of skeletal points in a continuous fashion (i.e., for some finite length axis segment or arc).

Finding a good threshold for branch significance

Characterisations (a) above of the 2 types of branches lead the authors to consider the depth inside the object as a relevant measure to characterise the significance of a skeletal pixel. Hence, they first propose the following bound to distinguish primary skeletal pixels/branches:

, such that , that is phi is between 60 and 180 degrees (from an equilateral triangle to a completely open one).

Then the author note that f should vary as we get inside the object and become less stringent. Since f is maximally bounded to an angle of 180 deg., they consider a varying f, maximal near the background (with the condition f'(0) = 2, b below should be greater than 0.5), and propose:

This criterion still give some breaks w/r to a correct topology; thus the authors then consider characterisations (b) above and propose the following alternative:

where phi is in degrees and d in number of pixels. For example, the values (a, b) = (1, 3/2) give nice results. Still homotopy is not guaranteed. Therefore, the authors have studied the topology of skeletons in 2D and 3D.
