Orthographic Projections


Orthographic projections contain all the information required to make an object.

Predominately used in Engineering/Construction

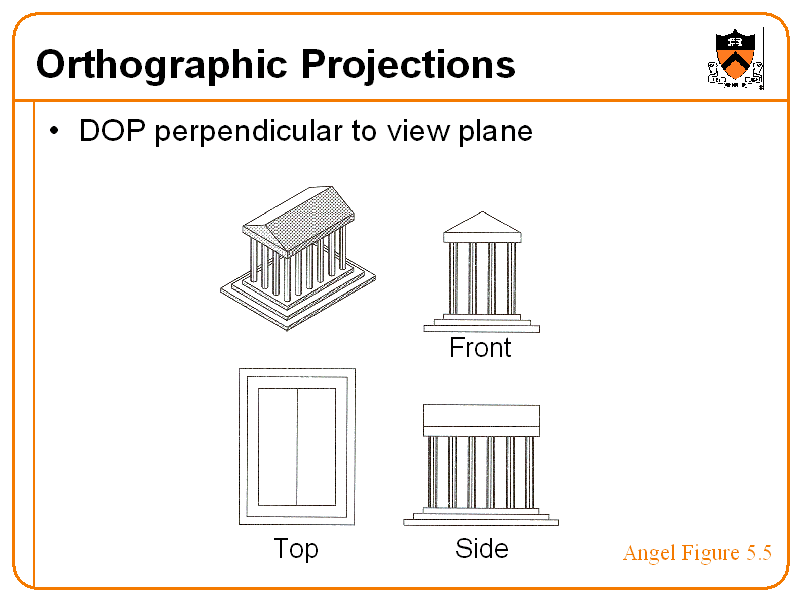

Usually show 3 views of the object:

  • The Plan (from above)
  • Front Elevation (front view)
  • Side Elevation (side view)



<
