There is a growing need to be able to accurately and efficiently search visual data sets, and in particular, 3D shape data sets. This paper proposes a novel technique, called Topology Matching, in which similarity between polyhedral models is quickly, accurately, and automatically calculated by comparing Multiresolutional Reeb Graphs (MRGs). The MRG thus operates well as a search key for 3D shape data sets. In particular, the MRG represents the skeletal and topological structure of a 3D shape at various levels of resolution. The MRG is constructed using a continuous function on the 3D shape, which may preferably be a function of geodesic distance because this function is invariant to translation and rotation and is also robust against changes in connectivities caused by a mesh simplification or subdivision. The similarity calculation between 3D shapes is processed using a coarse-to-fine strategy while preserving the consistency of the graph structures, which results in establishing a correspondence between the parts of objects. The similarity calculation is fast and efficient because it is not necessary to determine the particular pose of a 3D shape, such as a rotation, in advance. Topology Matching is particularly useful for interactively searching for a 3D object because the results of the search fit human intuition well.

Notes:

1. Introduction and Related Work

• Increasing number of 3D models
• Need for searching 3D models
• 2D previous work: recognizing from shape (e.g., curvature) or image properties (e.g., color, texture, wavelet coeffs.)
• 3D previous work:
  • CAD/CAM feature extraction: too domain specific
  • Curvature: too sensitive to noise
  • Global histogram: cannot estimate local features
• Required features (to handle Global and Local properties simultaneously):
  • Concise representation of shape
  • Catch features of shape well
  • Computed automatically and robustly for general shapes
• Propose to use a "skeletal structure"
• Previous work
  • Medial Axis:
    • Computationally expensive,
    • Sensitive to noise and small undulations,
    • May have "degenerate surfaces"
  • Reeb graphs:
    • Skeleton determined using a continuous scalar function, mu, defined on an object
    • Always one dimensional (1D) graph structure
    • Invariant to translation and rotation (--> if mu chosen carefully).
    • Robust against connectivity changes caused by simplification, subdivision, remeshing.
    • Resistant against noise and deformation
    • Possible to use multiresolutional structure
• Propose a Multiresolution Reeb Graph (MRG) based on geodesic distance

2. Reeb Graph and Its Multiresolutional Extension

2.1 Reeb Graph

• Define mu as a continuous real function on an object C (in 3D space): mu: C --> R .
• The Reeb graph of mu in the quotient space C x R is defined as an equivalent class
  • (X1, mu(X1)) ~ (X2, mu(X2)) iff
    • mu(X1) = mu(X2)
    • X1 and X2 are in the same connected component of Inverse(mu).mu((X1)
• If mu is defined on a manifold with non-degenerate critical points, mu is Morse.
  • Simple example: height function on 2D manifold (most previous work use this)
    • mu(v(x,y,z)) = z
    • Example: torus, Reeb graph corresponds to connectivity information for iso-contours.

2.2 Multiresolutional Reeb Graph

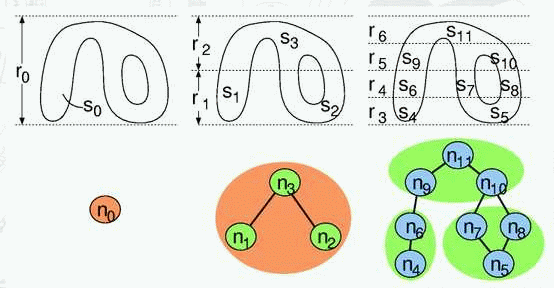

• Create Reeb graphs at different levels of detail
  • Object is partitioned into regions based on function mu
  • Node = connected component, adjacent nodes are linked by edges
  • If components touch each other in the object go to finer level: repartition each region
  • Graph properties:
    • Parent-child relationships between nodes of adjacent levels
    • Converges to original Reeb graph
    • Finer level Reeb graph contains all info of coarser levels

3. Definition of the Continuous Function mu for Topology Matching

• Use geodesic distance (on the surface S of object C ) --> to achieve rotation invariance and resistance against problems caused by noise or small undulations
• Lazarus & Verroust: Level Set Diagram (LSD), geodesic distance from source point.
  • Difficult to automatically and stably find source point.
  • Solution: define mu as the sum of geodesic distances, g, from a point v to all other points, p, on surface S :

  • Normalize mu to make it invariant under scaling:
    • mu_norm = (mu - minimum mu)/(maximum mu)
      (NB: minimum value of mu corresponds to most central point on object)

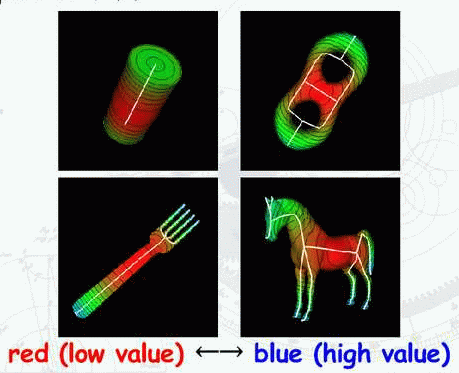

    • Examples:
      • mu_norm is zero everywhere for a sphere
      • more asymmetric shapes have wider range of values

4. Construction of the Multiresolutional Reeb Graph

• Method described for triangle mesh

4.1 Calculating the Integral of Geodesic Distance

• Computationally expensive to compute all geodesic distances

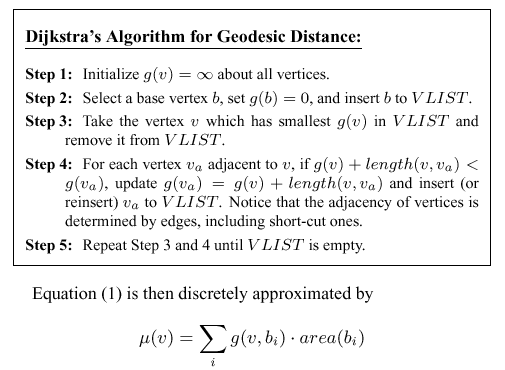

• Approximate by Dijkstra's algorithm based on edge length (of pre-processed mesh)
• Because mu_norm value is assigned to each vertex, distribution of vertices has to be fine enough to represent well the distribution of the function:
  • It is sometimes necessary to resample until all edge lengths < threshold.
• If edges are uniform in a certain direction, then mu values are biased:

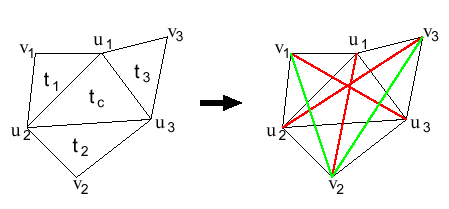

  • Introduce short-cut edges to make direction of edges more isotropic

• mu for a "base vertex" b is discretely approximated by:
  • Sum of lengths of shortest paths to all other vertices, times area(b), where
    • area(b) = Sum of area of faces < distance r away from b
    • r = sqrt(0.005 * area(S)) generates about 150 base vertices

4.2 Construction of the Multiresolutional Reeb Graph

• First construct finest resolution Reeb Graph:
• Divide domain (range of the function) of mu_norm into K ranges.
• Triangles lying over range boundary are subdivided s.t. each triangle belongs to exactly one range.
• Find connected components in each range (sets of triangles). Each component corresponds to one R-node.
• If triangle sets between adjacent ranges are connected, add an edge between corresponding R-nodes.
• Then construct coarser levels by unifying adjacent R-nodes, while maintaining parent-child relationships.

4.3 Computational Cost for Constructing the Multiresolutional Reeb Graph

• O(n log n) (because of Dijkstra, in 2D, i.e., along a surface), n == vertex count of mesh
• Mesh of 10,000 vertices, using 150 base vertices: 15 seconds on Pentium II 400 MHz

5. Matching Algorithm

5.1 Overview

• Each R-node gets an attribute m, at finest level: "using area and length of triangle set"
• Coarser levels: sum of attributes of child nodes
• Similarity between nodes is defined as similarity between attributes: sim(m, n)
  • 0 <= sim(m, n) <= sim(m, m)
  • sum of sim(m, m), over all m = 1
  • sim(R, S) = sum over all m in R, n in S of sim(m, n), (R and S Reeb graphs)
• Added restriction: Maintain topological consistency

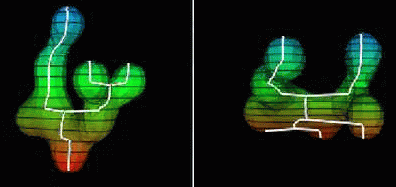

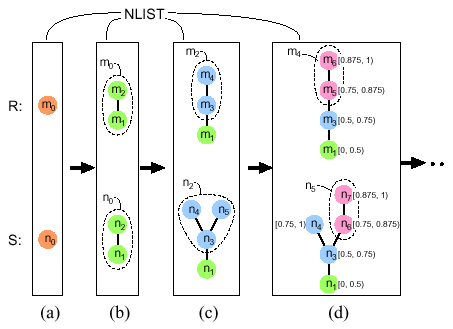

• Match coarse to fine:
  • Add coarsest nodes of R and S to NLIST
  • Find matching node pair that preserves topological consistency
  • Move pair to MPAIR, insert child nodes of pair into NLIST
  • If NLIST not empty goto second step
  • Else compute sim(R, S) using pairs in MPAIR

5.2 Topological Consistency of the Multiresolutional Reeb Graph

• Two rules: R-nodes can only be matched if:
  • They are in the same range, and their parents are matched

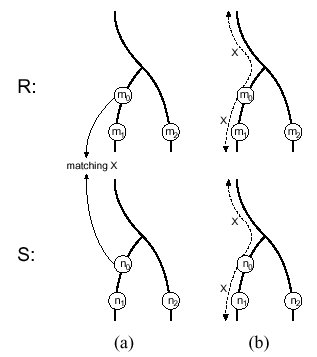

  • Their MLISTs are the same. MLIST = list of matching labels propagated to that R-node (avoids matching nodes in different branches).

• Matching label is propagated in direction of monotonic increase or decrease of mu_norm

5.3 Finding the Matching of R-node Pairs

• Find R-node for which sim(m, m) is maximal (node that affects final result the most)
• Find candidate matching nodes (same mu_norm range, parents must match, equal MLIST)
• If no candidates, remove R-node
• Select from candidates using matching function mat(m, n)
• mat(m, n) computed using two aspects of similarity:
  • "loss of similarity" because of:
    • Matching m and n
    • Matching adjacent nodes to m and n
    • loss(m, n) = 0.5 * [sim(m, m) + sim(n, n)] - sim(m, n)
      (i.e. decrease in final similarity value)
  • Taking adjacent R-nodes into account:
    • mat(m, n) = -loss(m, n) - [sum over all adjacent mu_norm ranges of loss(adj(m), adj(n))]
      adj(m) = adj([s, t>, m) = sum of attr. of all adjacent R-nodes in [s, t) > range

• They limit adj([s, t>, m) to R-nodes in NLIST to save computation time

5.4 R-node Attribute and Similarity

• m = (a(m), l(m))
• a(m) = (1/rnum) * area(m) / area(S)
• l(m) = (1/rnum) * len(m) / (sum of len(n) for all n)
• len(m) = max(m) - min(m) (max and min of mu_norm in range)
  len(m) is not always equal to the range size
• First compute attributes at finest levels, then sum for coarser levels
• sim(m, n) = w * min(a(m), a(n)) + (1 - w) * min(l(m), l(n))

5.5 Matching at a mu_norm Region Boundary

• Sensitivity to the placement of the region boundaries of the function mu_norm:
  • Slight differences in ranges can cause very different graphs

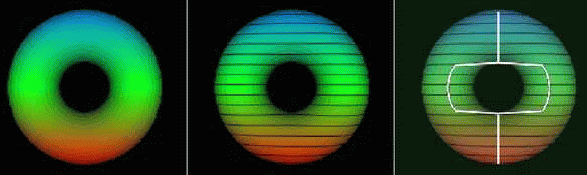

  • Example: height function on torus

• Fix: allow one node m to match two nodes (n1, n2) if they are adjacent to the same R-node

6. Experiments of Similarity Estimation

• 230 meshes (Viewpoint, 3Dcafe, Stanford, own data)
• Pentium II 400 MHz, running Linux
• "resolution was 7" (= finest resolution has 64 ranges)
• w = 0.5

6.1 Correspondence between Two Models

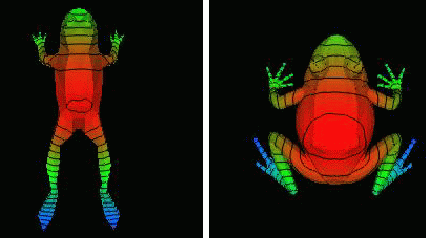

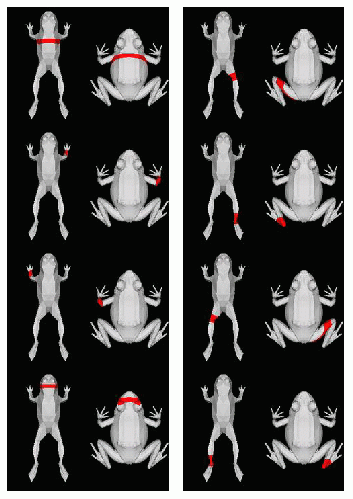

• Two frogs, parts of legs of frogs match despite deformation (bent vs. stretched legs)

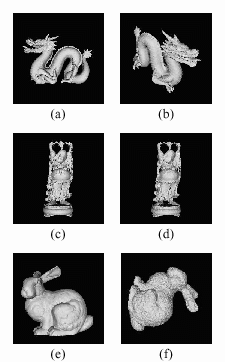

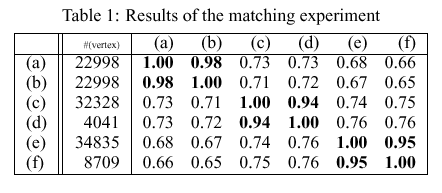

6.2 Matching Experiment

6.3 Search Experiment

• Pick one model out of the 230, and search against the remaining 229 models

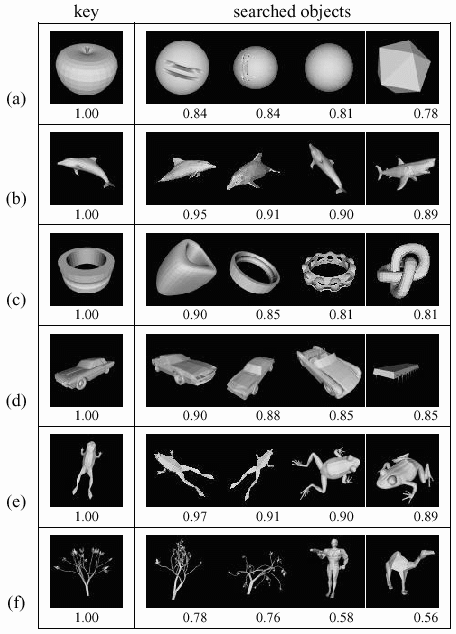

• Four images shown for 6 query models: apple, dolphin, ring, car, frog, plant
• Overall good results

• "We believe that the results agree well with general human intuition."
• Results are reasonable for certain classes:
  • frog, animal1, dinosaur2, dolphin, stick, car, ellipse, dragon, donut, earring, sphere
    (NB: dinosaur2, dragon, earring are very small classes)

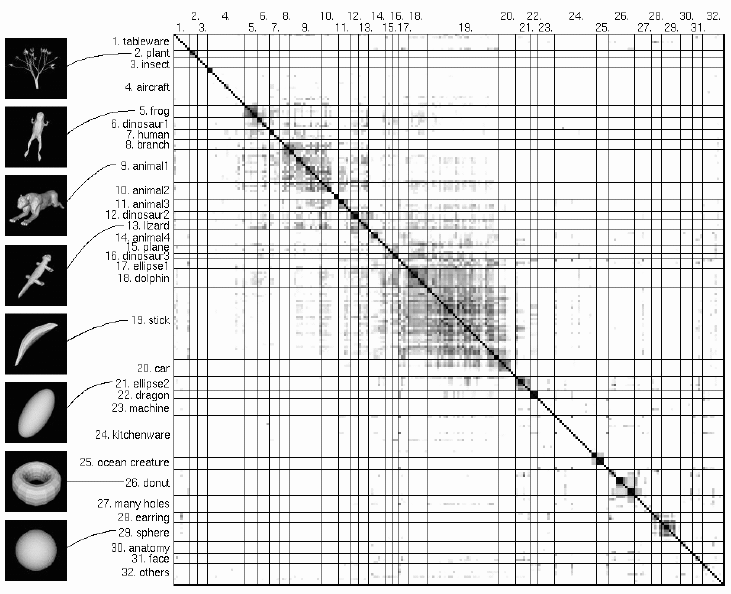

• Results are bad (i.e. almost exclusively white) for:
  • tableware, aircraft, animal4, machine, kitchenware, many holes, anatomy, face, others
• Computations: Average of about 12 seconds to compute 229 similarities, range [1, 37] seconds;
  depends on number of R-nodes in query object
  (sphere has 7 R-nodes, 1 second query time, plant has 2,000, 37 seconds)

7. Conclusions - Future work:

• Morphing, pose estimation
• Use more attributes to calculate similarity (e.g. color, curvature).
• Experimenting with Euclidean instead of geodesic distance: Deformation detection.
• Apply to volumetric data, use density function for mu.
