PiPoHost Class Reference

#include <rapidPiPoHost.h>

Inheritance diagram for PiPoHost:

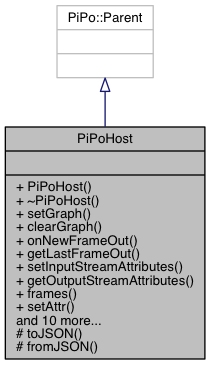

Collaboration diagram for PiPoHost:

Public Member Functions
	PiPoHost ()
	~PiPoHost ()
virtual bool	setGraph (std::string name)
virtual void	clearGraph ()
virtual void	onNewFrameOut (double time, std::vector< PiPoValue > &frame)
virtual std::vector< PiPoValue >	getLastFrameOut ()
virtual int	setInputStreamAttributes (pipoStreamAttributes &sa, bool propagate=true)
virtual pipoStreamAttributes	getOutputStreamAttributes ()
virtual int	frames (double time, double weight, PiPoValue *values, unsigned int size, unsigned int num)
virtual bool	setAttr (const std::string &attrName, double value)
virtual bool	setAttr (const std::string &attrName, const std::vector< double > &values)
virtual bool	setAttr (const std::string &attrName, const std::string &value)
virtual std::vector< std::string >	getAttrNames ()
virtual double	getDoubleAttr (const std::string &attrName)
virtual std::vector< double >	getDoubleArrayAttr (const std::string &attrName)
virtual std::string	getEnumAttr (const std::string &attrName)
virtual std::string	getJSON ()
virtual void	writeJSON (const std::string &filepath)
virtual bool	putJSON (const std::string &jsonMessage)
virtual bool	readJSON (const std::string &filepath)

Protected Member Functions
Json::Value	toJSON ()
bool	fromJSON (Json::Value &jv)

Friends
class	PiPoOut

Constructor & Destructor Documentation

PiPoHost()

PiPoHost::PiPoHost

(

)

~PiPoHost()

PiPoHost::~PiPoHost

(

)

Member Function Documentation

clearGraph()

void PiPoHost::clearGraph ( )

virtual

frames()

int PiPoHost::frames ( double  time, double  weight, PiPoValue *  values, unsigned int  size, unsigned int  num  )

virtual

fromJSON()

bool PiPoHost::fromJSON ( Json::Value &  jv )

protected

getAttrNames()

std::vector< std::string > PiPoHost::getAttrNames ( )

virtual

getDoubleArrayAttr()

std::vector< double > PiPoHost::getDoubleArrayAttr ( const std::string &  attrName )

virtual

getDoubleAttr()

double PiPoHost::getDoubleAttr ( const std::string &  attrName )

virtual

getEnumAttr()

std::string PiPoHost::getEnumAttr ( const std::string &  attrName )

virtual

getJSON()

std::string PiPoHost::getJSON ( )

virtual

Get a JSON representation of the model in the form of a styled string

getLastFrameOut()

std::vector< PiPoValue > PiPoHost::getLastFrameOut ( )

virtual

getOutputStreamAttributes()

pipoStreamAttributes PiPoHost::getOutputStreamAttributes ( )

virtual

onNewFrameOut()

void PiPoHost::onNewFrameOut ( double  time, std::vector< PiPoValue > &  frame  )

virtual

putJSON()

bool PiPoHost::putJSON ( const std::string &  jsonMessage )

virtual

configure empty model with string. See getJSON()

readJSON()

bool PiPoHost::readJSON ( const std::string &  filepath )

virtual

read a JSON file at file path and build a modelSet from it

setAttr() [1/3]

bool PiPoHost::setAttr ( const std::string &  attrName, double  value  )

virtual

setAttr() [2/3]

bool PiPoHost::setAttr ( const std::string &  attrName, const std::vector< double > &  values  )

virtual

setAttr() [3/3]

bool PiPoHost::setAttr ( const std::string &  attrName, const std::string &  value  )

virtual

setGraph()

bool PiPoHost::setGraph ( std::string  name )

virtual

setInputStreamAttributes()

int PiPoHost::setInputStreamAttributes ( pipoStreamAttributes &  sa, bool  propagate = true  )

virtual

toJSON()

Json::Value PiPoHost::toJSON ( )

protected

writeJSON()

void PiPoHost::writeJSON ( const std::string &  filepath )

virtual

Write a JSON model description to specified file path

Friends And Related Function Documentation

PiPoOut

friend class PiPoOut

friend

---

The documentation for this class was generated from the following files:

• src/signalProcessing/rapidPiPoTools/rapidPiPoHost.h
• src/signalProcessing/rapidPiPoTools/rapidPiPoHost.cpp
